聚合广告系列-三方聚合方式

广告技术

Word count: 2.5kReading time: 12 min

 2022/04/04 

目的

聚合广告SDK，一般会接很多第三方广告（如Facebook、Admob等），而实际项目需求中，由于对包体积有要求，所以仅仅会接入必须的三方渠道，按此要求，则聚合广告SDK对三方对依赖，需做到可插拔式，不能对三方有强依赖，本文探索iOS的几种实现方式，并分析其优缺点。

方案一

利用iOS的runtime机制，反射所有的方法调用、delegate注册等，做到对三方广告不存在明文的代码调用，以此做到可插拔式。

案例

Delegate操作

获取Delegate

1	Protocol *protocol = [RunTimeTools objc_allocateProtocol:"GADInterstitialDelegate"];

设置Delegate

[AdMobInterstitialAdTask setMethodDelegate: protocol];

+ (void)setMethodDelegate: (Protocol *)protocol{
    //获取AdMobInterstitialAdTask 的class
    Class clz = [AdMobInterstitialAdTask class];
    //成功收到广告
    [self dealInterstitialDidReceiveAd:clz protocol:protocol];
}

//处理interstitialDidReceiveAd 回调
+ (void)dealInterstitialDidReceiveAd: (Class) clz protocol: (Protocol *)protocol {

    SEL selector = @selector(interstitialDidReceiveAd:);
    SEL swizzledSelector = [RunTimeTools swizzledSelectorForSelector:selector];
    struct objc_method_description methodDescription = protocol_getMethodDescription(protocol, selector, NO, YES);

    InterstitialDidReceiveAdBlock undefinedBlockReceive2 =  ^(id slf, id ad) {
        NSLog(@"admob 请求成功1  %@ ", [ad valueForKey:@"adUnitID"]);
    };
    InterstitialDidReceiveAdBlock implementationBlockReceive2 =  ^(id slf, id ad) {
        NSLog(@"admob 请求成功2 %@ " , [ad valueForKey:@"adUnitID"]);
    };

    //动态注册
    [RunTimeTools replaceImplementationOfSelector:selector withSelector:swizzledSelector forClass:clz withMethodDescription:methodDescription implementationBlock:implementationBlockReceive2 undefinedBlock:undefinedBlockReceive2];
}

请求广告相关

//1.初始化GADMobileAds
   Class adMobileAds = NSClassFromString(@"GADMobileAds");

   id share = [adMobileAds performSelector:@selector(sharedInstance)];
   [share performSelector:@selector(startWithCompletionHandler:) withObject:nil];

   //2.设置项目ID
   [adMobileAds performSelector:@selector(configureWithApplicationID:) withObject: @"三方广告ID"];

   //3.初始化GADInterstitial
   Class admoInterstitial = NSClassFromString(@"GADInterstitial");
   self.interstitial = [admoInterstitial alloc];

   //4.设置广告did
   [self.interstitial performSelector:NSSelectorFromString(@"initWithAdUnitID:") withObject:self.getAdID];

   //5.设置delegate
   [self.interstitial setValue:self forKey:@"delegate"];

   //6.配置请求
   Class admobRequest = NSClassFromString(@"GADRequest");
   id request = [admobRequest performSelector:@selector(request)];

   //9.执行请求
   [self.interstitial performSelector:@selector(loadRequest:) withObject: request];

RunTimeTools

+ (Protocol *)objc_allocateProtocol:(const char *)name {
    // 检查该协议是否已经注册
    if (![self class_conformsToProtocol:kSecClass protocol:NSProtocolFromString([NSString stringWithUTF8String:name])]) {
        Protocol *protocol = objc_allocateProtocol(name);
        NSLog(@"%s creat protocol named",__func__);
        return protocol;
    }
    return nil;
}

+ (BOOL)class_conformsToProtocol:(Class)class protocol:(Protocol *)protocol {
    if (class_conformsToProtocol(class, protocol)) {
        NSLog(@"%s conformsToProtocol ",__func__);
        return YES;
    }else{
//        NSLog(@"%s %@ non-conformsToProtocol %@",__func__,NSStringFromClass(class),NSStringFromProtocol(protocol));
        NSLog(@"%s  non-conformsToProtocol ",__func__);
        return NO;
    }
}

+ (SEL)swizzledSelectorForSelector:(SEL)selector {
    return NSSelectorFromString([NSString stringWithFormat:@"_flex_swizzle_%x_%@", arc4random(), NSStringFromSelector(selector)]);
}

+ (void)replaceImplementationOfSelector:(SEL)selector withSelector:(SEL)swizzledSelector forClass:(Class)cls withMethodDescription:(struct objc_method_description)methodDescription implementationBlock:(id)implementationBlock undefinedBlock:(id)undefinedBlock {
    if ([self instanceRespondsButDoesNotImplementSelector:selector class:cls]) {
        return;
    }

    if ([cls instancesRespondToSelector:selector]) {
        NSLog(@"由此方法实现");
    }
    IMP implementation = imp_implementationWithBlock((id)([cls instancesRespondToSelector:selector] ? implementationBlock : undefinedBlock));

    Method oldMethod = class_getInstanceMethod(cls, selector);
    if (oldMethod) {
        class_addMethod(cls, swizzledSelector, implementation, methodDescription.types);

        Method newMethod = class_getInstanceMethod(cls, swizzledSelector);

        method_exchangeImplementations(oldMethod, newMethod);
    } else {
        class_addMethod(cls, selector, implementation, methodDescription.types);
    }
}

+ (BOOL)instanceRespondsButDoesNotImplementSelector:(SEL)selector class:(Class)cls {
    if ([cls instancesRespondToSelector:selector]) {
        unsigned int numMethods = 0;
        Method *methods = class_copyMethodList(cls, &numMethods);

        BOOL implementsSelector = NO;
        for (int index = 0; index < numMethods; index++) {
            SEL methodSelector = method_getName(methods[index]);
            if (selector == methodSelector) {
                implementsSelector = YES;
                break;
            }
        }

        free(methods);

        if (!implementsSelector) {
            return YES;
        }
    }

    return NO;
}

分析

此种方式，可以明显看出由于需要对三方库每个方法调用进行发射，过程非常繁琐。后续维护时，需要对比三方的方法是否有变更等，无法利用到xcode的监测机制，成本较高，不推荐此种方式。

方案二

要做到可插拔效果，所以广告SDK不能对三方库的代码进行明文调用，考虑采用接口编程的方式，利用设计模式的Adapter思想，把三方的库抽离起来。广告SDK不依赖三方库SDK，通过接口维护和各个三方库的关系。

案例

创建个基础SDK，仅仅包含些接口文件，广告SDK、三方库封装的SDK均依赖于此基础SDK

BaseFramework（以插屏广告示例）

@protocol BaseIntersitialAdapter <NSObject>

@required
/// 通过第三方广告ID进行请求
/// @param adID 第三方ID
- (void)requestAd:(NSString *_Nonnull)adID;

/// 判断广告是否可用
- (BOOL)isAdValid;

/// 展示广告
/// @param viewController 要在此界面上展示
- (BOOL)showAdWithViewController:(UIViewController *_Nonnull)viewController;

/// 设置回调
- (void)setIntersitialDelegate:(id<BaseIntersitialDelegate> _Nullable)intersitialDelegate;
@end

封装的三方SDK Adapter（以Admob 为例）

@interface AdmobIntersitialAdTask ()<GADFullScreenContentDelegate>
@property (nonatomic, weak) id<BaseIntersitialDelegate> delegate;
@property (nonatomic, strong) GADInterstitialAd *interstitial;
@property (nonatomic, copy) NSString *adID;
@end

@implementation AdmobIntersitialAdTask

#pragma mark - BaseIntersitialAdapter
- (BOOL)isAdValid {
    if(self.interstitial == nil) {
        return NO;
    }
    return YES;
}

- (void)requestAd:(NSString *)adID {

    self.adID = adID;

    GADRequest *request = [GADRequest request];
    [GADInterstitialAd loadWithAdUnitID:adID
                                  request:request
                        completionHandler:^(GADInterstitialAd *ad, NSError *error) {
        if (error) {
            if ([self.delegate respondsToSelector:@selector(onIntersitialAdLoadFail:error:)]) {
                [self.delegate onIntersitialAdLoadFail:self.adID error:error];
            }
          return;
        }
        self.interstitial = ad;
        self.interstitial.fullScreenContentDelegate = self;

        if ([self.delegate respondsToSelector:@selector(onIntersitialAdLoad:)]) {
            [self.delegate onIntersitialAdLoad:self.adID];
        }
    }];
}

- (void)setIntersitialDelegate:(id<BaseIntersitialDelegate>)intersitialDelegate {
    self.delegate = intersitialDelegate;
}

- (BOOL)showAdWithViewController:(UIViewController *)viewController {

    if ([self isAdValid]) {
        [self.interstitial presentFromRootViewController:viewController];
        return YES;
    }
    return NO;
}

#pragma mark - GADFullScreenContentDelegate
- (void)ad:(id<GADFullScreenPresentingAd>)ad didFailToPresentFullScreenContentWithError:(NSError *)error {
    if ([self.delegate respondsToSelector:@selector(onIntersitialAdDisplayFail:error:)]) {
        NSError *error = [self createNewError:@"com.AdmobIntersitialAdapter" desc:@"展示失败" code:-1];
        [self.delegate onIntersitialAdLoadFail:self.adID error:error];
    }
}

- (void)adDidDismissFullScreenContent:(id<GADFullScreenPresentingAd>)ad {
    if ([self.delegate respondsToSelector:@selector(onIntersitialAdClose:)]) {
        [self.delegate onIntersitialAdClose:self.adID];
    }
}

- (void)adWillPresentFullScreenContent:(id<GADFullScreenPresentingAd>)ad {
    if ([self.delegate respondsToSelector:@selector(onIntersitialAdDisplay:)]) {
        [self.delegate onIntersitialAdDisplay:self.adID];
    }
}

- (void)adDidRecordClick:(id<GADFullScreenPresentingAd>)ad {
    if ([self.delegate respondsToSelector:@selector(onIntersitialAdClick:)]) {
        [self.delegate onIntersitialAdClick:self.adID];
    }
}

广告SDK

@interface AdMobInterstitialAdTask ()<BaseIntersitialDelegate>

@property (nonatomic, strong) id<BaseIntersitialAdapter> intersitialAdTask;

@end

@implementation AdMobInterstitialAdTask

- (void)reuqestAd:(BOOL) isExpectUseAdCache {
    [super reuqestAd:isExpectUseAdCache];

    Class admobIntersitialAdTaskClass = NSClassFromString(@"AdmobIntersitialAdTask");
    self.intersitialAdTask = [[admobIntersitialAdTaskClass alloc] init];
    [self.intersitialAdTask setIntersitialDelegate:self];

    dispatch_async(dispatch_get_main_queue(), ^{
        [self.intersitialAdTask requestAd:self.getAdID];
    });
}

- (void)showAd:(NSString *)positionID withViewController:( UIViewController *)viewController{
    [super showAd:positionID withViewController:viewController];
    [self.intersitialAdTask showAdWithViewController:viewController];
};

- (BOOL)isReady {
    if (self.intersitialAdTask == nil) {
        return false;
    }
    return [self.intersitialAdTask isAdValid];
}

分析

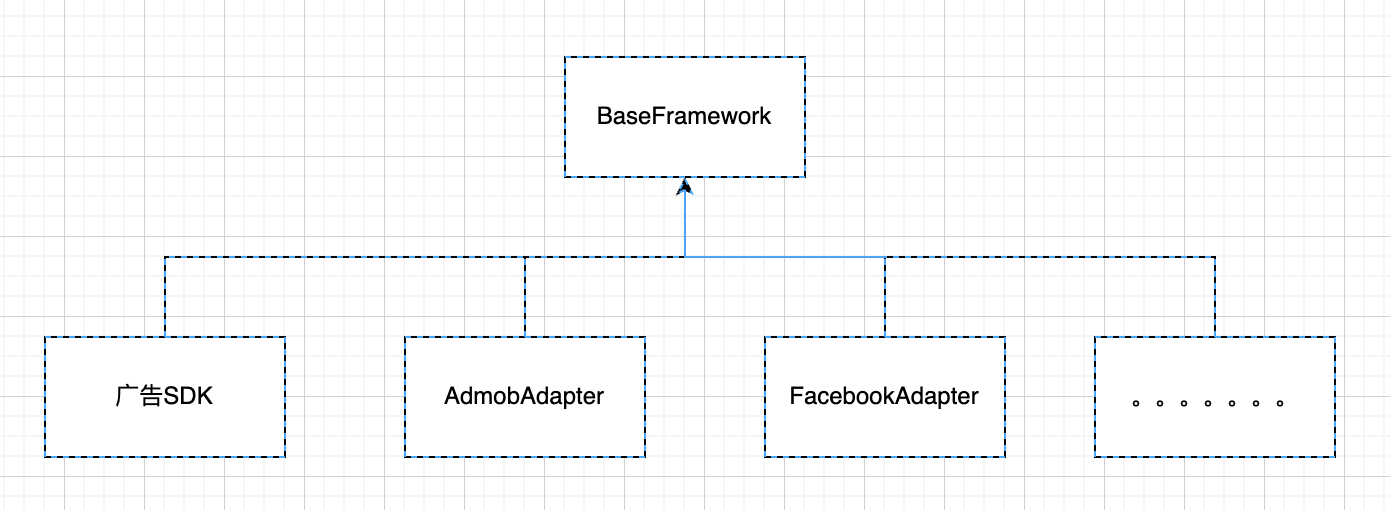

此项目的结构如下图所示：

由此，可以看出，广告SDK、和第三方渠道没有直接的关系，广告SDK、渠道方共同依赖BaseFramework，依此达到广告SDK和渠道方解耦的目的。

此方案，一个明显的问题，是需要对三方做个封装，且会对基础接口单独分装一个BaseFramework。所以如果要接10个渠道，则最终要维护的SDK数量为1+10+1 = 12个。

方案三

方案三其实是方案二的变种，方法二需要多维护一个BaseFramework。在方案三中，把BaseFramework去掉，BaseFramwork中的内容移到广告SDK中，其他渠道SDK依赖广告SDK。

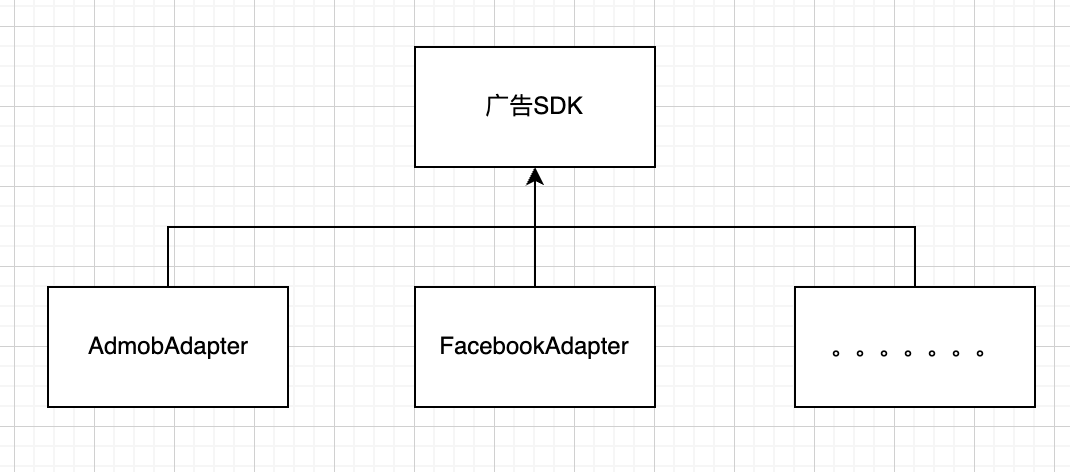

此项目组的结构如下图所示：

具体代码不再示例，从项目结构中，可以明显看出，此方案较方案二可以减少一个SDK维护。

方案四

思想还是Adapter模式，方案二、三其实是通过抽象接口+Adapter的形式实现。方案四是利用了iOS语言的特性，声明一个h文件，把第三方的接口信息都复制过来，然后实际调用的时候，判断下是否实现了方法即可。

案例

AdMobInterstitialClass.h文件，仅仅只有接口的定义，把第三方的接口定义复制了过来

#import <UIKit/UIKit.h>
#if __has_include(<GoogleMobileAds/GoogleMobileAds.h>)
#import <GoogleMobileAds/GoogleMobileAds.h>
#else

NS_ASSUME_NONNULL_BEGIN

@protocol GADFullScreenContentDelegate;

/// Protocol for ads that present full screen content.
@protocol GADFullScreenPresentingAd <NSObject>

/// Delegate object that receives full screen content messages.
@property(nonatomic, weak, nullable) id<GADFullScreenContentDelegate> fullScreenContentDelegate;

@end

/// Delegate methods for receiving notifications about presentation and dismissal of full screen
/// content. Full screen content covers your application's content. The delegate may want to pause
/// animations or time sensitive interactions. Full screen content may be presented in the following
/// cases:
/// 1. A full screen ad is presented.
/// 2. An ad interaction opens full screen content.
@protocol GADFullScreenContentDelegate <NSObject>

@optional

/// Tells the delegate that an impression has been recorded for the ad.
- (void)adDidRecordImpression:(nonnull id<GADFullScreenPresentingAd>)ad;

/// Tells the delegate that the ad failed to present full screen content.
- (void)ad:(nonnull id<GADFullScreenPresentingAd>)ad
    didFailToPresentFullScreenContentWithError:(nonnull NSError *)error;

/// Tells the delegate that the ad presented full screen content.
- (void)adDidPresentFullScreenContent:(nonnull id<GADFullScreenPresentingAd>)ad;

/// Tells the delegate that the ad dismissed full screen content.
- (void)adDidDismissFullScreenContent:(nonnull id<GADFullScreenPresentingAd>)ad;

@end

@class GADInterstitialAd;

/// A block to be executed when the ad request operation completes. On success,
/// interstitialAd is non-nil and |error| is nil. On failure, interstitialAd is nil
/// and |error| is non-nil.
typedef void (^GADInterstitialAdLoadCompletionHandler)(GADInterstitialAd *_Nullable interstitialAd,
                                                       NSError *_Nullable error);

/// An interstitial ad. This is a full-screen advertisement shown at natural transition points in
/// your application such as between game levels or news stories. See
/// https://developers.google.com/admob/ios/interstitial to get started.
@interface GADInterstitialAd : NSObject <GADFullScreenPresentingAd>

/// The ad unit ID.
@property(nonatomic, readonly, nonnull) NSString *adUnitID;

/// Information about the ad response that returned the ad.
@property(nonatomic, readonly, nonnull) GADResponseInfo *responseInfo;

/// Delegate for handling full screen content messages.
@property(nonatomic, weak, nullable) id<GADFullScreenContentDelegate> fullScreenContentDelegate;

/// Loads an interstitial ad.
///
/// @param adUnitID An ad unit ID created in the AdMob or Ad Manager UI.
/// @param request An ad request object. If nil, a default ad request object is used.
/// @param completionHandler A handler to execute when the load operation finishes or times out.
+ (void)loadWithAdUnitID:(nonnull NSString *)adUnitID
                 request:(nullable GADRequest *)request
       completionHandler:(nonnull GADInterstitialAdLoadCompletionHandler)completionHandler;

/// Returns whether the interstitial ad can be presented from the provided root view
/// controller. Sets the error out parameter if the ad can't be presented. Must be called on the
/// main thread.
- (BOOL)canPresentFromRootViewController:(nonnull UIViewController *)rootViewController
                                   error:(NSError *_Nullable __autoreleasing *_Nullable)error;

/// Presents the interstitial ad. Must be called on the main thread.
///
/// @param rootViewController A view controller to present the ad.
- (void)presentFromRootViewController:(nonnull UIViewController *)rootViewController;

@end

NS_ASSUME_NONNULL_END

#endif

#endif /* AdMobInterstitialClass_h */

使用的时候通过respondsToSelector判断

Class GADInterstitialClass = NSClassFromString(@"GADInterstitialAd");
    Class GADRequestClass = NSClassFromString(@"GADRequest");
    if (GADInterstitialClass && [GADInterstitialClass respondsToSelector:@selector(loadWithAdUnitID:request:completionHandler:)] && GADRequestClass && [GADRequestClass respondsToSelector:@selector(request)]) {
        __weak typeof(self) weakSelf = self;
        GADRequest *request  = [GADRequestClass request];
        [GADInterstitialClass loadWithAdUnitID:_pid
                                       request:request
                             completionHandler:^(GADInterstitialAd *ad, NSError *error) {

        }];
    }
